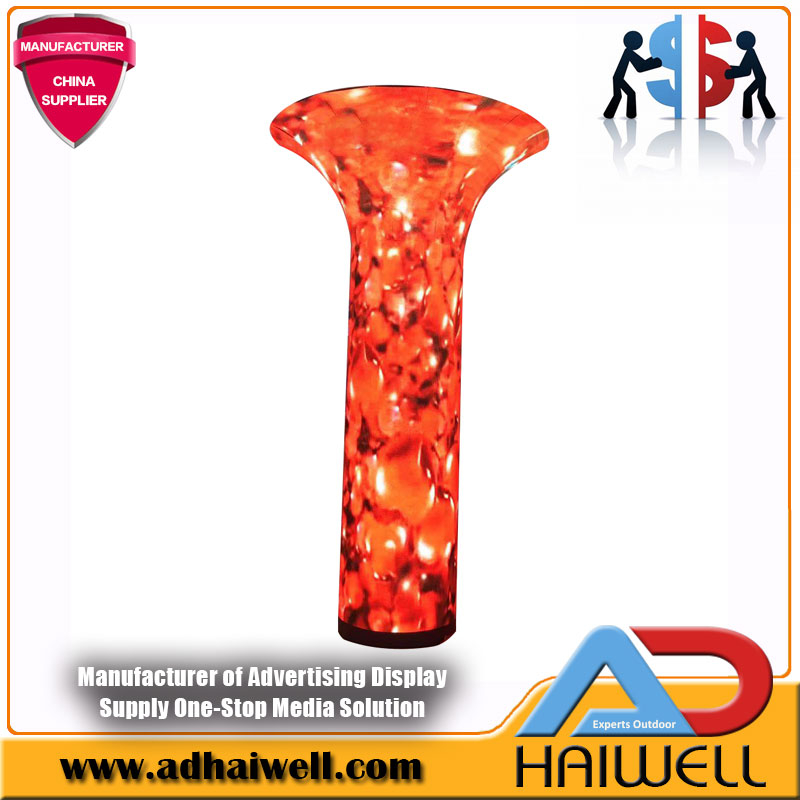

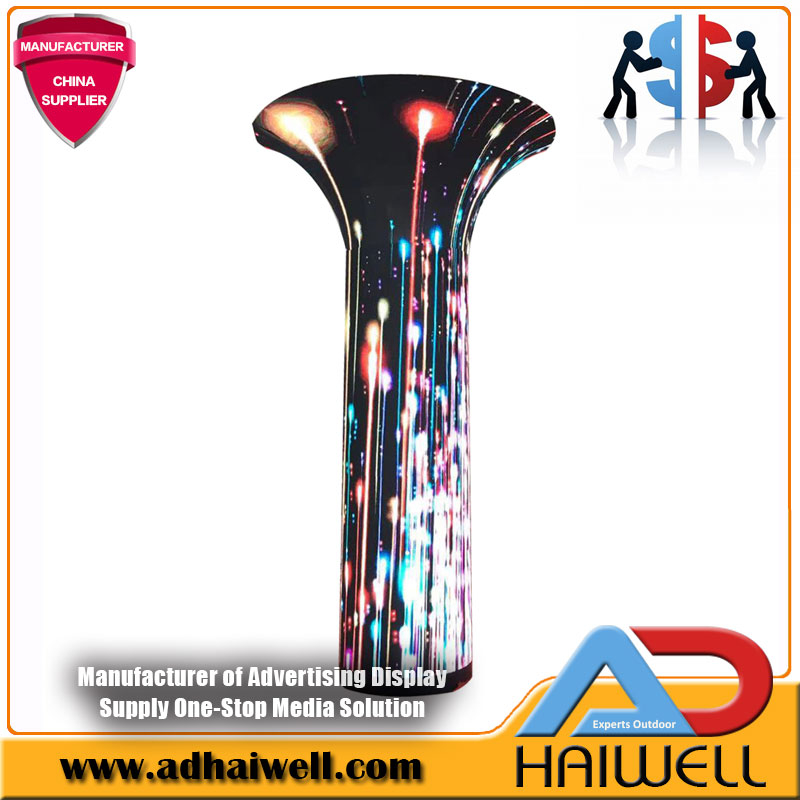

Trumpet Cylinder LED Sign
Adhaiwell
8528590000
W6 x H 9 m
Product Description
Adhaiwell is using the new technology of LED Flexible module to make creative LED signs. Captivating your target audience with our innovative advertising LED signs.
Creative Flexible LED Display Signage, any shape of LED screen can be customized with different pixel pitch, shape, effects, etc. Endless imagination and effects come in a freeform way.

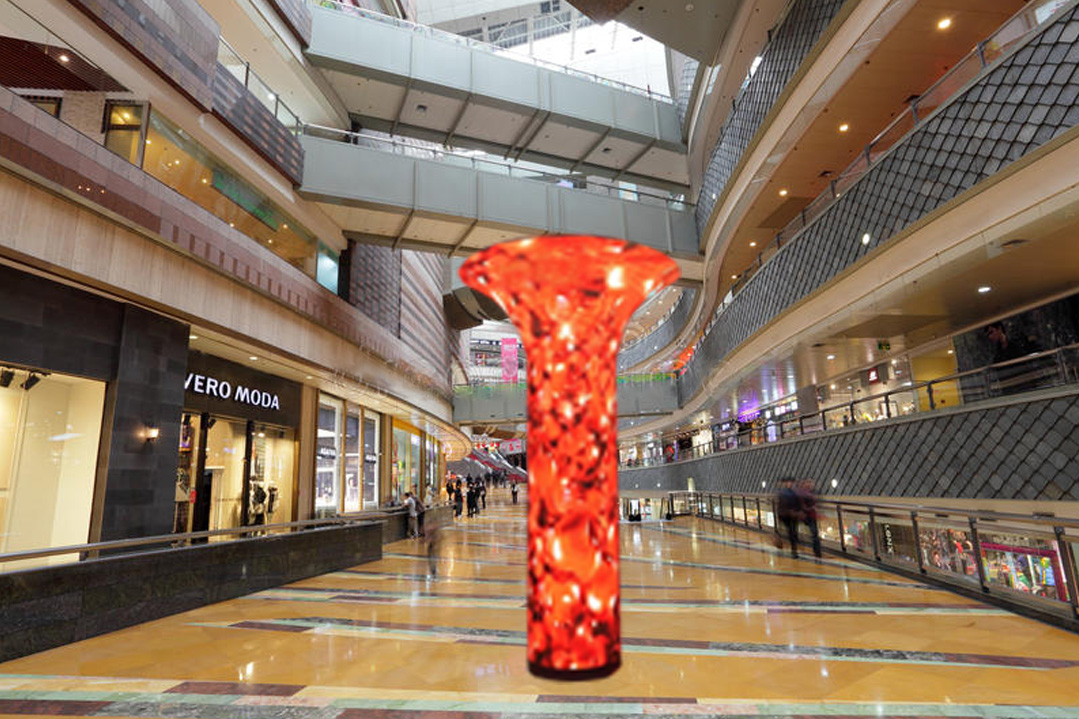

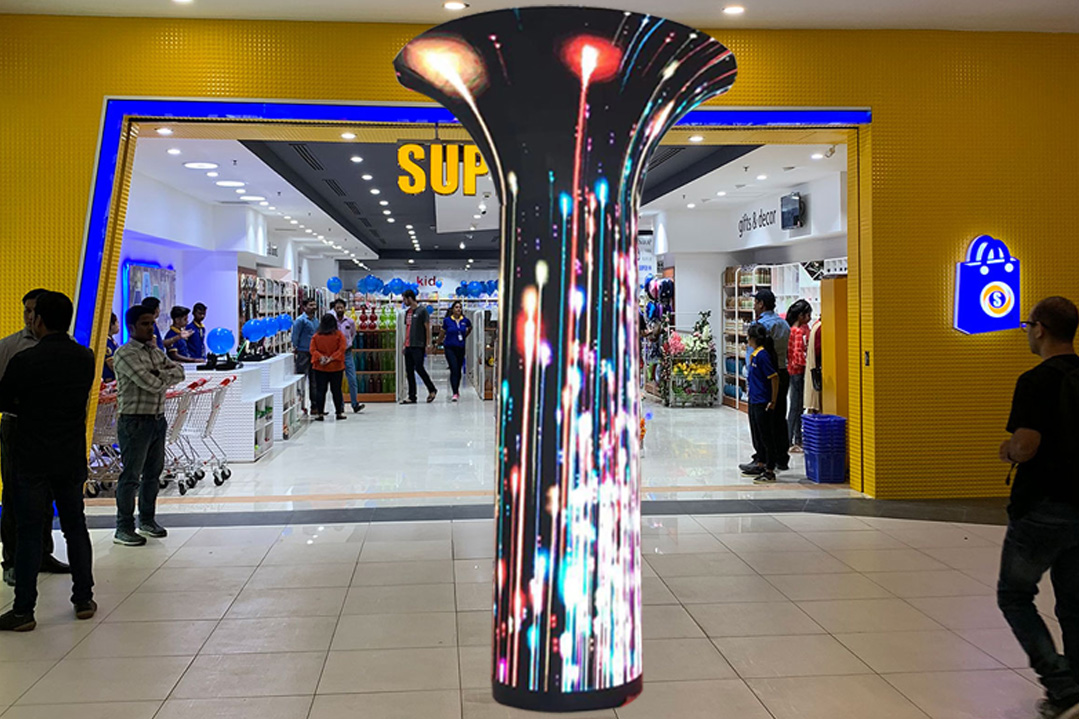

Creative led display is specially designed for stage, bar, events, supper mall , large plaza etc to creates eye-catching effects. Unique shapes and stunning visual impact are just one of the highlights of creative flexible led display, the brand experience which is the most important goal of our custom media solution.
The Trumpet Pillar LED Screen Sign is composed of conventional flexible led modules and sector flexible led modules with trumpet shape.

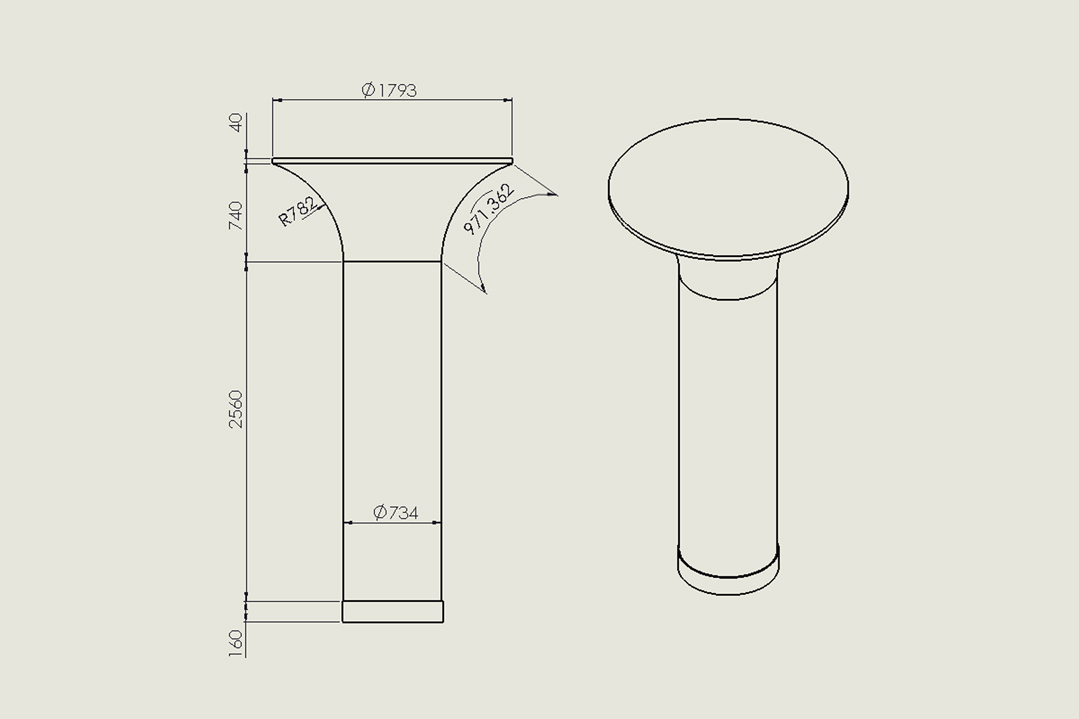

Size: Cylinder Diameter 0.733m, Height 3.5 m
Technical Parameters | ||
LED Parameters | ||
No. | Item | Luminous Intensity |
1 | Red LED | 100-120CD |
2 | Green LED | 250-290CD |
3 | Blue LED | 70-90CD |
Module Specifications | ||
1 | Pixel Pitch | 2.5mm |
2 | Pixel Configuration | 1R1G1B |
3 | Module Resolution | 96(w)dots*48(h)dots |
4 | Module Pixels | 4608 |
5 | Module Size | 240mm*120m |
6 | Module Weight | 0.35KG |
Screen Parameters | ||
1 | Brightness | ≥1000cd |
2 | Driving IC | MBI5124IC |
3 | LED lamp | SMD2121 |
4 | View Angle | 160°(W) 140°(H) |
5 | Display Area | 9.98m2 |
6 | Optimal Viewing Distance | 5m-100m |
7 | Brightness Control | 256 degree |
8 | Fresh frequency | 1920HZ |
9 | Frame Frequency | 60HZ |
10 | Input Voltage | AC220V±10%/AC110v |
11 | Defects Rate | 0.001 |
12 | MTBF | ≥9000hours |
13 | Life span | 100000hours |
14 | Module Display Brightness Uniformity | 99.90% |
15 | Earth Leakage Current | 0.008A |
16 | Protective Grade | IP40/IP21 |
17 | Temperature-operating | -20℃--- 40℃ |
18 | Humidity-operating | 10-95% RH |
19 | Controlling system | XIXUN |
20 | Operating System | win7 /win8 / win10 / win XP |
